VULCANO® M FR

Home / Prodotti / VULCANO® M FR
Delivery
Suction
Air, fumes and gases
Liquids
Solids
PVC
TPU
TPE-S
TPE-V
Other
POLYESTER YARN
STEEL SPIRAL
STAINLESS STEEL SPIRAL
PVC SPIRAL
FLAME RETARDANT
COMPRESSIBLE
FOOD GRADE
PHARMA GRADE
ANTISTATIC MATERIAL
ELECTRICAL CONDUCTIVE MATERIAL
ANTISTATIC VERSION (WITH COPPER WIRE)
DIN 4102-B1
EU 10/2011
FDA Reg.
UL 94
USP CLASS VI
Flexible hoses for abrasion

Flexible hoses for abrasion

IndustryWoodworking
temp
+90°-40°
DOWNLOAD THE DATASHEET

Color:

translucent with TPU coated copper coloured spiral.

Diameter range:

25-406

Features:

Translucent ester based TPU duct reinforced with copper colored TPU coated high adhesion steel spiral. Wall thickness from 0,4 mm to 0,75 mm.

Maximum flexibility, high compressibility (about 5:1) and lightness make this duct an excellent choice for cost saving storage and transport and easy handling in operation. Resistant to abrasion, mineral oils, UV, ozone and ageing. Expecially suitable for dynamic applications.

The TPU-coated spiral allows more bending sessions than a hose with a not coated steel spiral.

It can be made conductive (R<102 Ohm/m) by grounding the spiral.

Application:

suction of wood shavings, pellets, granulates, sawdust, abrasive powders. In woodworking and ceramic industry and everywhere very high flexibility is required.

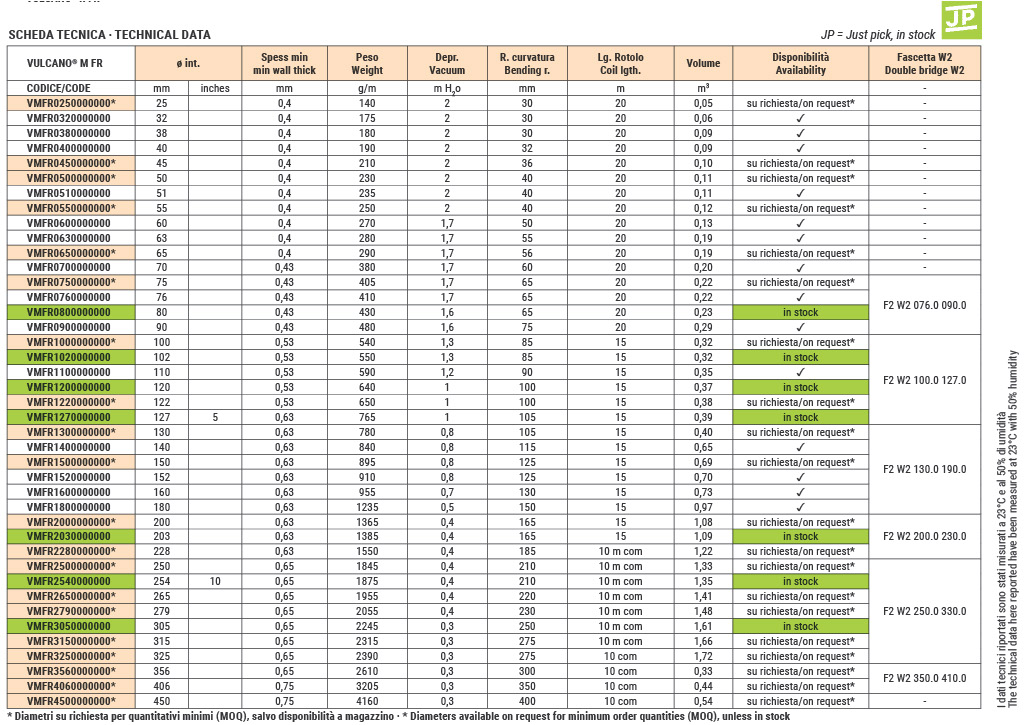

TECHNICAL SHEET PDF
tabella tecnica
